Audi Suspension Tuning for Performance
Suspension tuning transforms how an Audi accelerates, stops, and responds in corners while directly affecting occupant safety and tire life. Proper tuning reduces braking distance by preserving contact patch, limits unpredictable weight transfer during emergency maneuvers, and controls understeer or oversteer tendencies that are inherent to platform geometry. For drivers in San Jose, CA 95125 who commute, take canyon roads, or run track days, changes to springs, dampers, anti-roll bars, and alignment need to be selected to match road conditions, vehicle load, and driving goals.

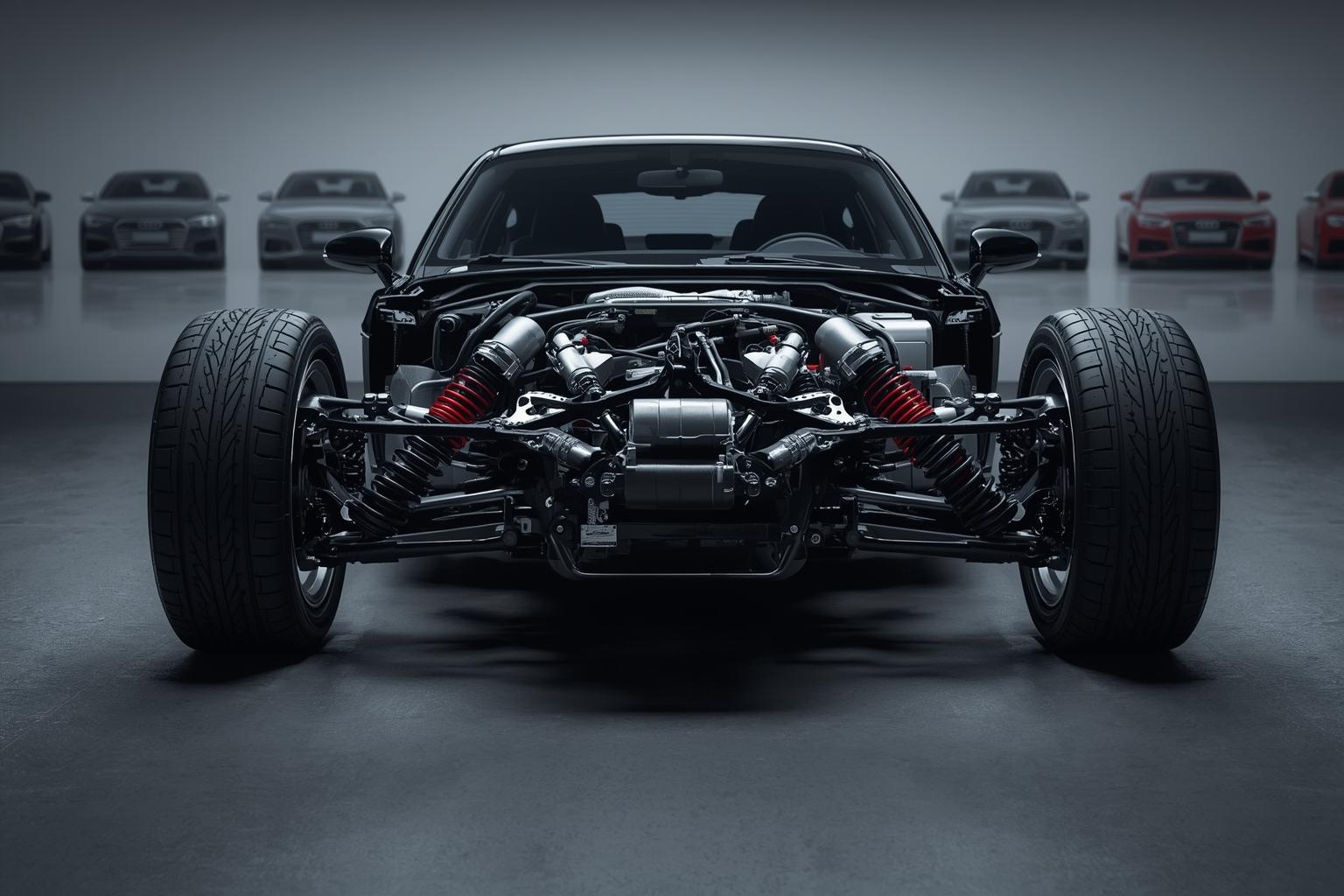

Architectures, Common Models and Their Characteristics
Audi uses several suspension architectures across its range. Transverse torsion-beam layouts appear on smaller, front-wheel models while longitudinal multi-link and double-wishbone systems serve performance models and SUVs. Quattro all-wheel drive adds complexity by distributing torque and changing effective unsprung mass. Below are practical comparisons of popular models, their typical factory hardware, and what owners commonly alter when seeking better handling or ride balance.
| Model | Typical Architecture | Factory Spring Rate Approx. (lb/in) | Factory Damper Type | Common Upgrades | Typical Issues |
|---|---|---|---|---|---|
| A3 / S3 (Mk3/Mk4) | Front MacPherson / Rear Multi-link | Front 150–220, Rear 120–180 | Velocity-sensitive dampers | Lower springs, adjustable coilovers, thicker rear bar | Front grip limit, bouncy rear on coarse pavement |
| A4 / S4 (B8/B9) | Multi-link front and rear | Front 180–260, Rear 140–210 | Gas-charged monotube | Sport springs, damper valving, sway bars | Highway float, uneven tire wear |
| A6 / S6 | Multi-link all around | Front 220–320, Rear 200–300 | Adaptive options on some trims | Adaptive recalibration, coilovers for track | Heavy body roll, delayed response on transitions |
| Q5 / SQ5 | MacPherson front, multi-link rear | Front 200–300, Rear 180–260 | Heavier damping | Upgraded springs, stronger anti-roll bars | Nose dive in hard braking, roll in turns |
| RS3 / RS4 / RS6 | Sophisticated multi-link | Stiffer OEM rates 250–400+ | High-performance dampers, some adaptive | Track coilovers, bushing upgrades | Sensitive to rough surfaces, ride harsh when stiffer |
Interpreting these numbers requires context: a drop in ride height typically increases spring load and alters anti-dive or squat characteristics. Real-world tuning blends geometry, damper valving, and tires to achieve predictable handling.

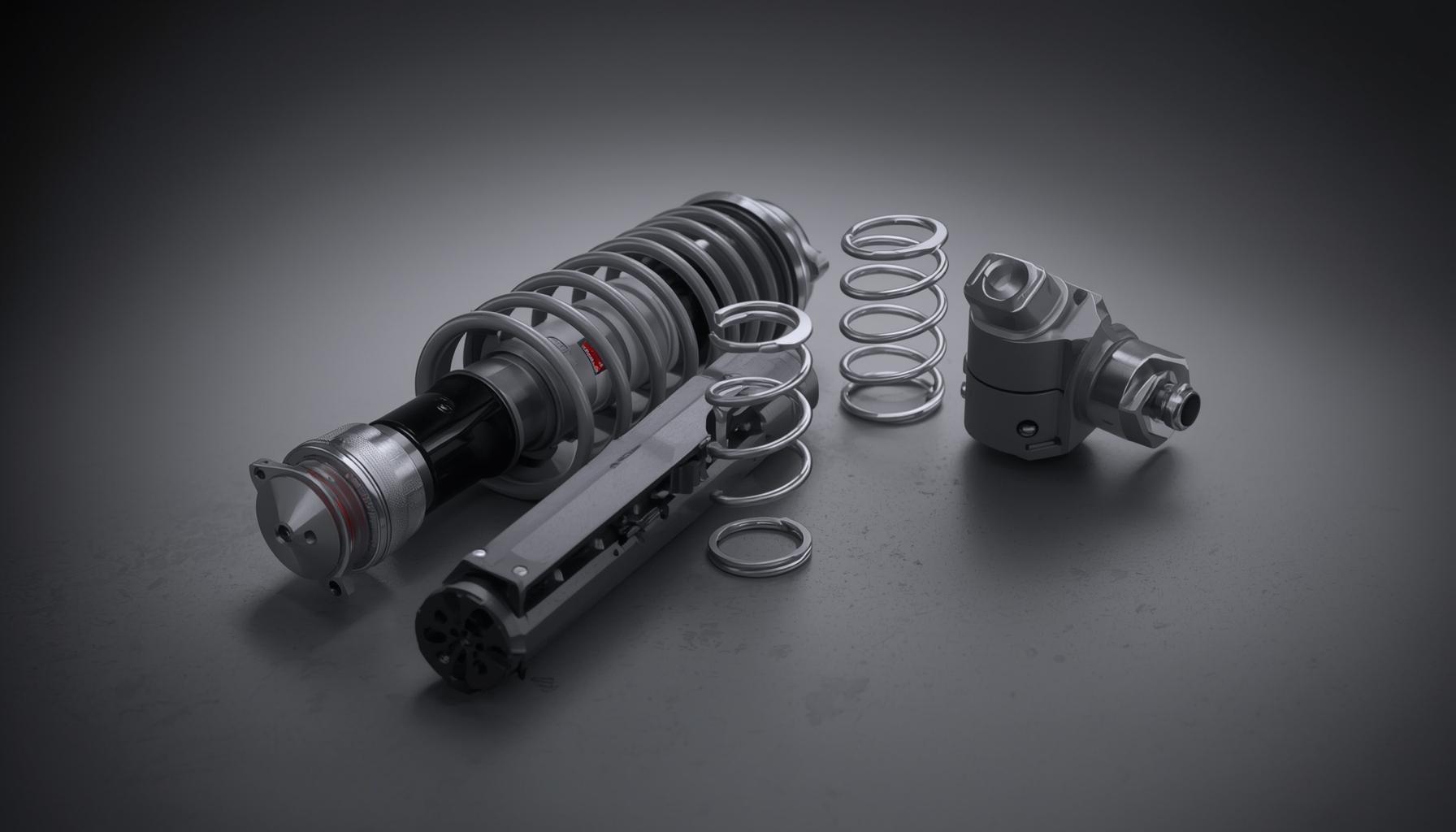

Components: Springs, Dampers and Coilovers
Spring selection begins with intended use. Progressive springs offer compliance over small bumps while becoming firmer under large deflections. Linear springs give predictable cornering stiffness and are preferred for track calibration. Dampers control energy dissipation and must be matched to spring rates. Twin-tube and mono-tube are common. Mono-tube dampers provide better heat management for repeated high-load use. Adjustable dampers add compression and rebound tuning; street drivers benefit from a middle setting, while track-focused drivers may require firm rebound to prevent bottoming under lateral load.
Coilover systems integrate springs and dampers for tunable ride height and often include camber plates. Choosing a coilover depends on whether the primary objective is daily comfort, on-track lap times, or a hybrid compromise. Street-oriented coilovers should maintain compliance over potholes and retain OEM bump stop characteristics. Track units emphasize valving, spring rates, and durability.
Electronics, Anti-roll, Bushings and Alignment Fundamentals
Adaptive dampers used on many Audis, such as Dynamic Ride Control variants, automatically modify valving according to input from wheel sensors. Reprogramming or using plug-in controllers can yield improved transient control, but calibration must respect safety systems like ABS and ESC.
Anti-roll bars influence roll stiffness distribution. Increasing front bar stiffness shifts the balance toward oversteer, while a stiffer rear bar promotes understeer. Bushings and mounts change compliance; polyurethane or solid mounts reduce deflection but can transmit more noise and vibration. Suspension tuning should always consider alignment settings. Camber increases lateral grip in corners but accelerates inner shoulder wear. Caster affects steering returnability and high-speed stability. Toe settings influence turn-in responsiveness and straight-line stability.
Corner balancing redistributes static loads to equalize corner weight on a four-post scale. For track-focused Audis, corner balance reduces understeer at the limit and stabilizes transient behavior. Ride height decisions must respect ground clearance on San Jose’s urban streets while avoiding exaggerated drop that risks damage to plastic undertrays and intake snorkels.
Tires, Brakes, Workflow, and Practical Considerations
Tires influence suspension performance more than nearly any other component. Sidewall construction, compound, and contact patch area determine how quickly the suspension must react. Wheel offset and width affect scrub radius and steering effort. Braking and suspension are linked: excessive nose dive compromises tire contact and ABS calibration, so improved brake systems may require suspension and proportioning changes for balanced deceleration.
Tuning workflow should be data-driven. Use accelerometers, GPS-based lap telemetry, and tire temperature probes for iterative adjustments. A rolling test sequence alternating single-variable changes yields measurable gains. Dyno chassis simulations can help but on-car runs provide the true picture. For do-it-yourself work, basic tools include a competent alignment rack or reputable mobile alignment service, spring compressors, and proper torque equipment. Complex tasks such as adaptive module coding, corner weighing, and advanced damper valving are best handled by a shop with Audi experience.
Budgeting should be phased: start with tires and alignment, then springs or sway bars, then dampers or coilovers. Retain documentation for warranty and legal compliance. In California, modifications that affect emissions or safety systems may have regulatory implications; retain OEM parts for inspection events.

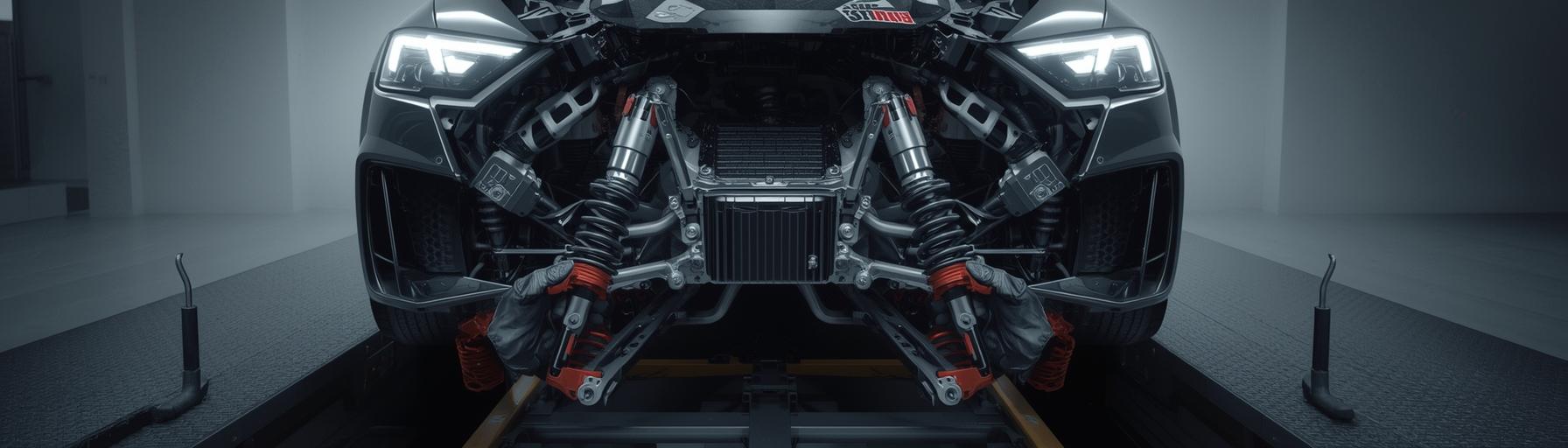

Working with Dynospot Racing and Sample Packages
Dynospot Racing, Inc. in San Jose specializes in Audi, BMW, VW, and Honda suspension work and performance tuning. Expect initial inspection, road test, alignment check, and a proposal with options. Typical packages include:
- Street Comfort Package: performance springs, moderate damper re-valve, four-wheel alignment, corner balance as needed. Estimated range $1,200–$2,000 depending on model and parts.
- Track Performance Package: adjustable coilovers, upgraded anti-roll bars, poly bushings, corner balancing, telemetry setup. Estimated $3,500–$7,500.
- Daily/Track Hybrid: progressive springs with adjustable dampers, reinforced mounts, alignment optimized for mixed use. Estimated $2,200–$4,000.
Case examples: an A4 owner seeking predictable canyon performance reduced understeer by upgrading rear bar and increasing front negative camber 0.7 degrees, with a resulting 15 percent faster average corner speed on a local test route. An SQ5 with heavy front bias benefited from a 25 percent increase in rear roll stiffness and damper re-valve to stabilize turn-in and reduce mid-corner push.
For appointments and evaluations, call Dynospot Racing, Inc. at (408) 271-9800. Technicians will provide a written scope, estimated labor hours, and post-installation checks including alignment verification and short road testing to confirm safety and performance targets.
